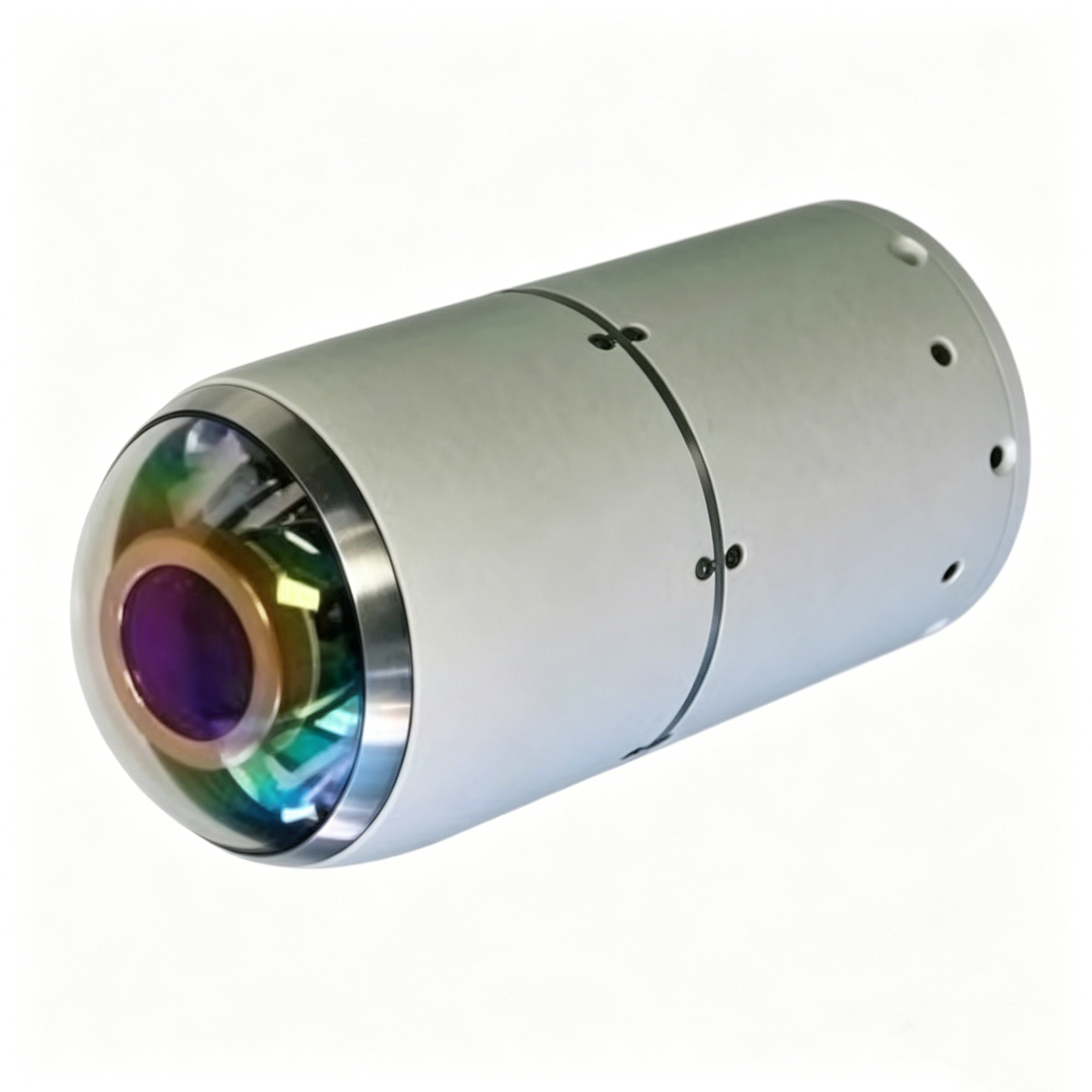

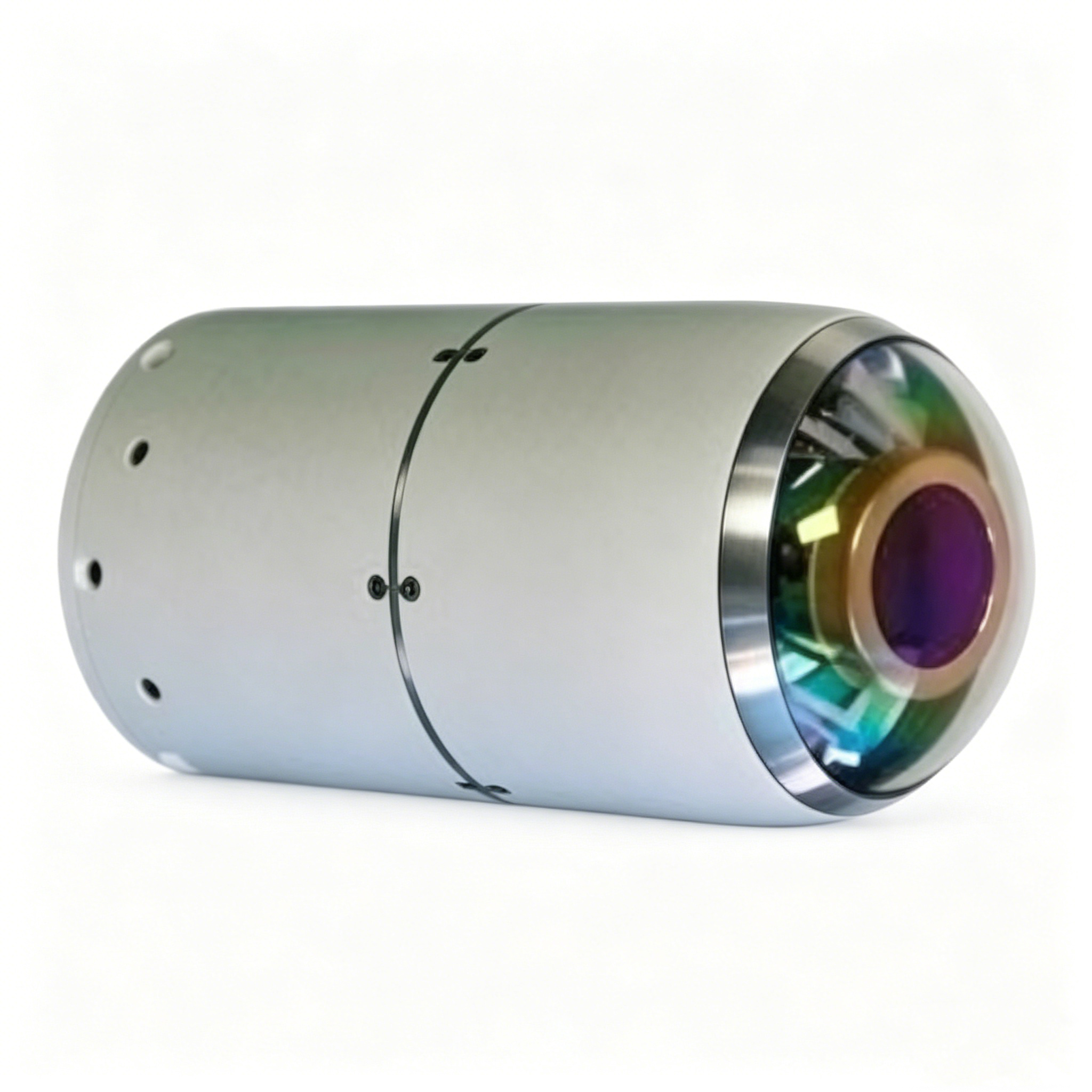

This sensor is optimized for precise tracking rather than wide-area scanning. Its narrower instantaneous field of view enhances detection sensitivity and measurement accuracy when locking onto a target.
Thanks to its stable gimbal structure, the system maintains a steady line of sight, enabling reliable tracking even when the platform or target is in motion.
Receives and processes reflected laser energy to provide precise tracking data.
Supports angular velocity tracking from 0.1°/s to 15°/s, covering both slow and fast target movements.
Provides angular output accuracy of ≤0.3° (3σ), ensuring reliable guidance information.
Under standard laser illumination conditions (80 mJ), the system has an operational range of up to 4 kilometers, making it suitable for medium-range precision guidance.
| Product Name | Gimbal-mounted Semi-active Laser Seeker |
|---|---|
|
Instantaneous Field of View |
±6° |
|
Working Distance |
≤4 km (under 80 mJ irradiation) |
|
Tracking Angular Velocity |
0.1°/s ~ 15°/s |
|
Output Angle Accuracy |
≤0.3° (3σ) |
|
Degree of Isolation |
>5% (3°/2Hz, 5°/1Hz) |
|
Weight: |
>1.5 kg |
|
Size |
Φ90 mm × 183 mm |
This seeker is specifically designed for systems requiring precise and stable laser tracking performance.
It is optimized for higher tracking accuracy and features a narrower field of view, making it suitable for precision strikes.
Under standard laser power conditions (80 mJ), the maximum range is up to 4 kilometers.
Yes. It supports tracking at angular velocities of up to 15°/s.
