The millimeter wave seeker head is the core technology and important component of precision guidance. It can detect targets on land, at sea and in the air with capability of all weather day and night operation and “fire and forget”.The millimeter wave seeker head can be used on missiles, shells and rockets.
Operating in the Ka-band frequency range, it provides stable detection performance and excellent resolution.
Supports frequency hopping and pulse Doppler modes to enhance target detection and tracking capabilities.
Start-up time is less than 6 seconds, enabling rapid deployment.
This seeker provides effective detection capabilities for both stationary and moving targets. For the 156-mm version, the detection range reaches up to 2 kilometers for stationary targets and 3 kilometers for moving targets. The detection range of the 180-mm version is further extended to 4 kilometers (stationary targets) and 5 kilometers (moving targets).

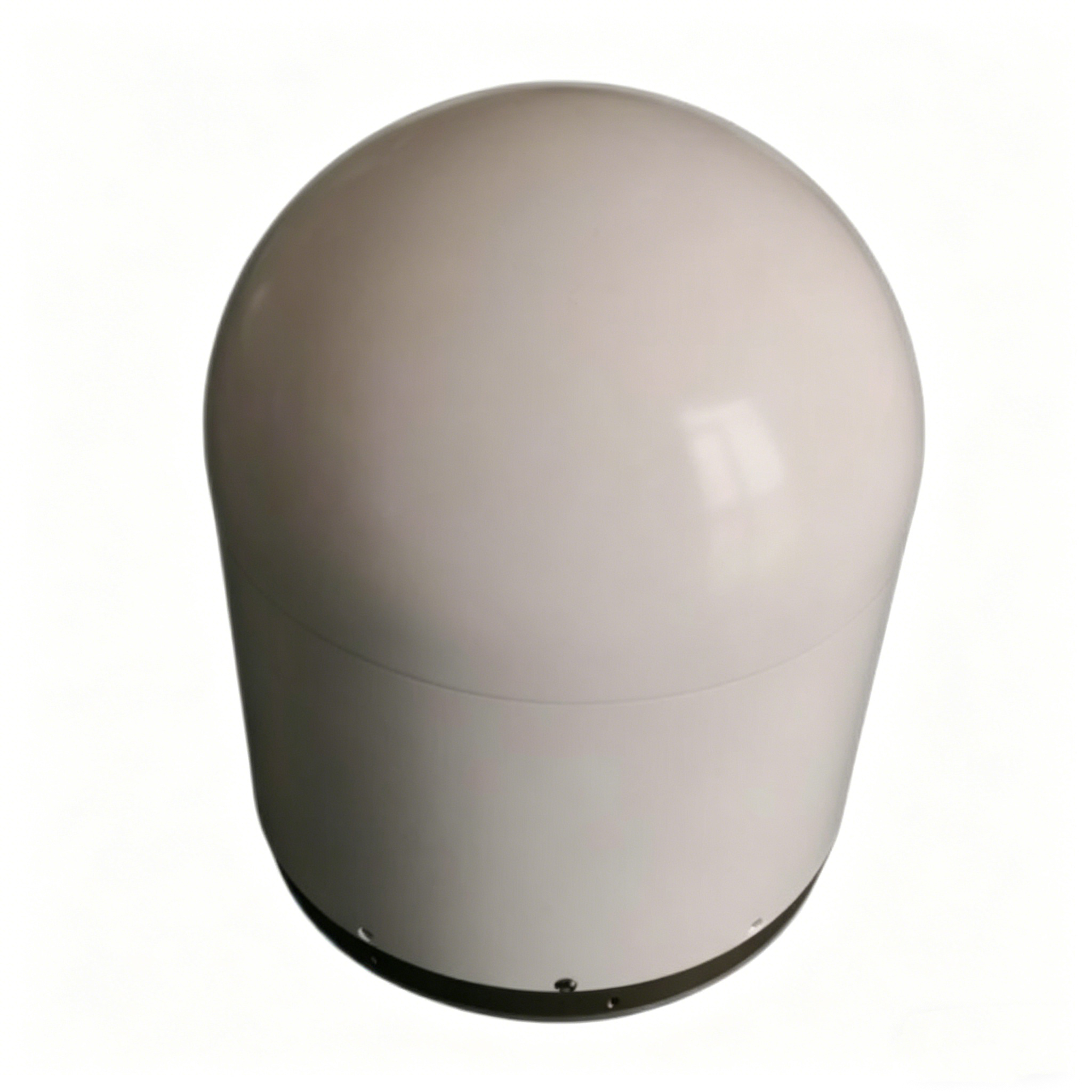

| Product Name | Low-cost Gimbal-mounted Millimeter Wave Seeker |
|---|---|
|
Working Band |
Ka Band |
|
Working Mode |
Stepping Frequency + Pulse Doppler |
|
Start-up Time |
≤6 s |
|
Single Continuous Working Time |
≥30 min |
|
Instantaneous Field of View |
>4° |
This millimeter-wave seeker is designed for systems requiring reliable detection in complex environmental conditions.
It uses radar signals rather than optical imaging, so it can operate in fog, smoke, and darkness.
It operates in the Ka band to ensure stable detection performance.
The blind zone is ≤90 meters.
