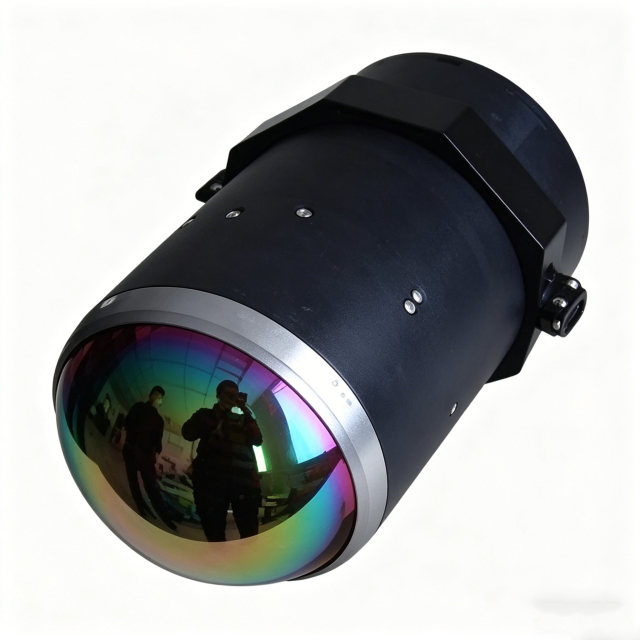

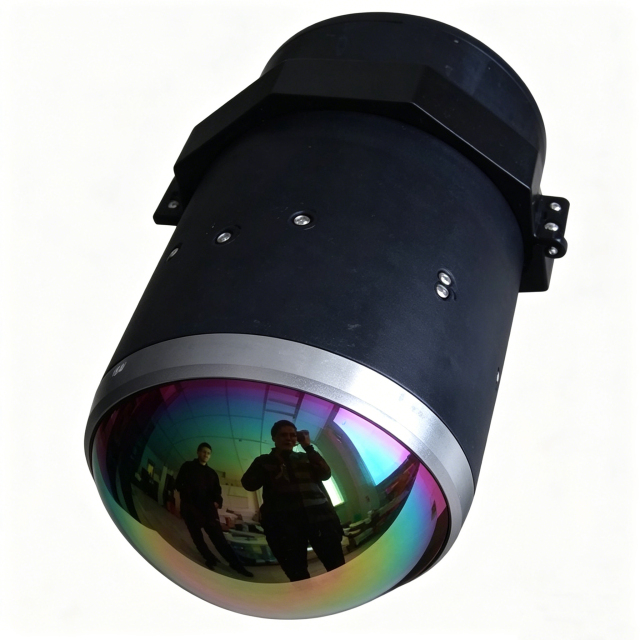

Gimbal-mounted Uncooled Infrared Imaging Seeker

This gimbal-mounted uncooled infrared imaging seeker is an electro-optical guidance system based on thermal imaging technology, designed specifically for target detection and tracking. It captures infrared radiation emitted by targets and converts it into real-time image data, enabling precise tracking even under low-visibility or nighttime conditions.

No external light source or laser source required
Performs exceptionally well in low-visibility environments Stable tracking of moving targets
Suitable for all-weather, round-the-clock operation

Thermal-Based Target Detection

Unlike visible-light systems, this seeker operates using infrared radiation and detects targets based on temperature differences. This makes it particularly effective in low-light conditions or environments with smoke, fog, or camouflage.

Its gimbal-mounted design enables stable tracking and flexible field-of-view control, thereby enhancing tracking performance under dynamic conditions.

Uncooled Infrared Imaging

Equipped with a 640×512 infrared detector, it delivers clear thermal images without the need for a complex cooling system.

Stable Measurement Capabilities

Line-of-sight angular velocity accuracy of up to 0.05°/s (1σ) ensures precise tracking data.

Flexible Output Options

Supports 25 Hz (PAL) and 30 Hz (CameraLink) output formats for easy system integration.

Designed for Reliable Target Tracking

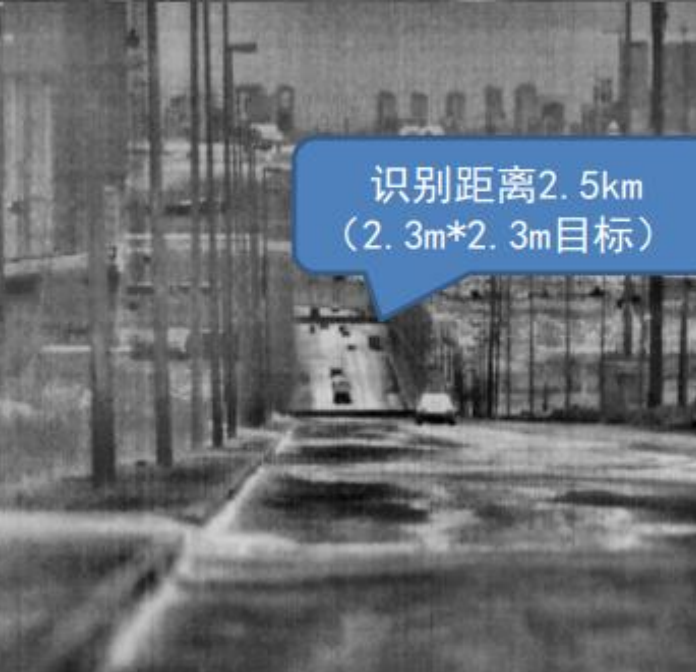

This tracker has a detection range of up to 2.5 kilometers (based on a 2.3 m × 2.3 m target with a 4K temperature difference) and is capable of medium-range thermal imaging detection and tracking.

It maintains stable tracking even at low speeds, with a minimum stable tracking speed of 0.05°/s. The system also features vibration resistance (>2%), ensuring stable operation in dynamic environments.

Specifications

Product Name	Gimbal-mounted Uncooled Infrared Imaging Seeker
Field of View	5.2°×3.9°
Image Resolution	640 × 512
Frame Rate	25Hz (PAL) / 30Hz (CameraLink)
Tracking Range	Pitch -22° ~ +5°, Yaw -20° ~ +20°
Maximum Tracking Angular Velocity	20°/s
Tracking Accuracy	0.1°
Recognition Distance	2.5 km
Line-of-Sight Angular Velocity Accuracy	0.05°/s (1σ)
Isolation	>2%
Minimum Tracking Speed	0.05°/s

Application Scenarios

This infrared imaging seeker is suitable for systems requiring passive thermal detection and tracking.

Infrared target tracking systems UAV payloads Surveillance and reconnaissance platforms All-weather precision guidance systems

FAQ

1.How is this different from a visible-light seeker?

It uses thermal imaging technology instead of visible light, so it can operate in darkness and in low-visibility environments.

2. What is the effective detection range?

Under standard test conditions, the identification range can reach up to 2.5 kilometers.

3. Can it track moving targets?

Yes. It supports tracking speeds of up to 20°/s with high accuracy.
