Unlike fixed-mount designs, this system employs a gimbal-mounted structure that allows for independent control of the line of sight. This significantly improves the stability of target tracking, particularly in high-speed or maneuvering scenarios.
Even during rapid movement, the system maintains precise alignment with the target, ensuring reliable signal acquisition and continuous guidance.
Captures reflected laser signals from a designated target and converts them into precise tracking data.
Supports independent motion control of the pitch and yaw axes, thereby enhancing tracking stability.
Supports line-of-sight angular velocities of up to ≥10°/s, making it suitable for high-speed moving targets.
This tracker is optimized for scenarios where the target or vehicle is in constant motion. Its pitch and yaw angles can reach ±27°, providing ample maneuverability for effective tracking.

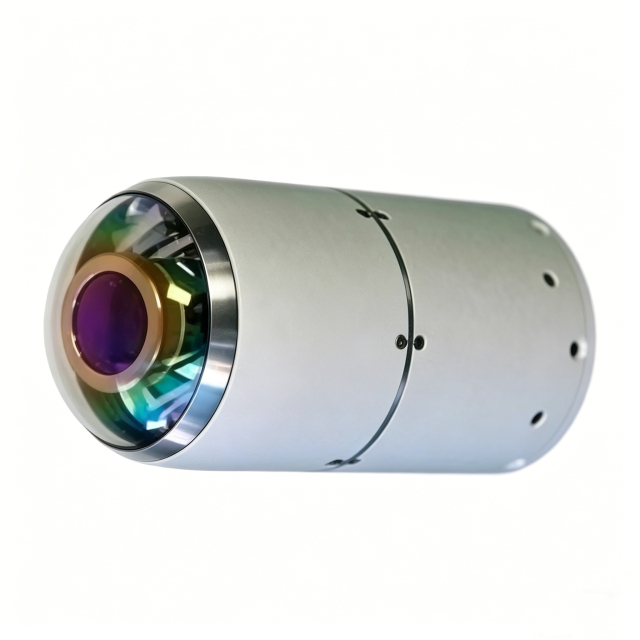

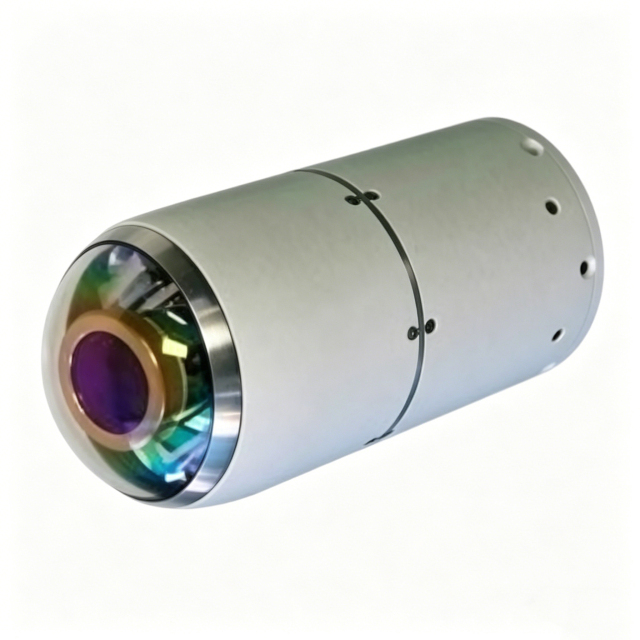

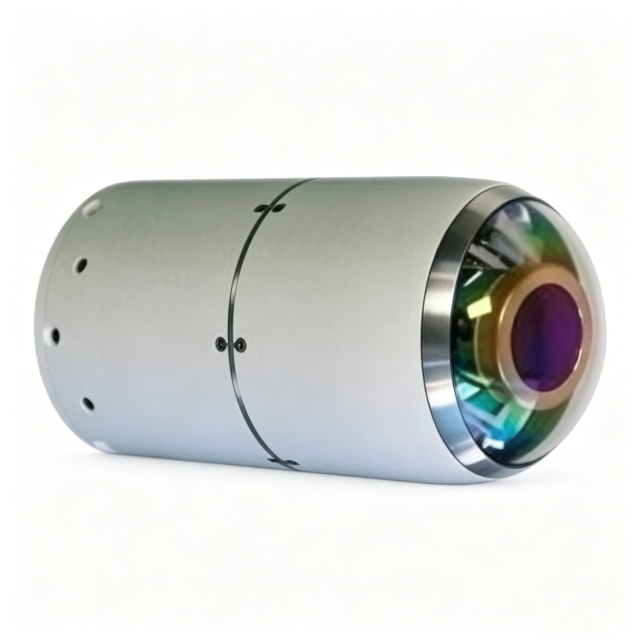

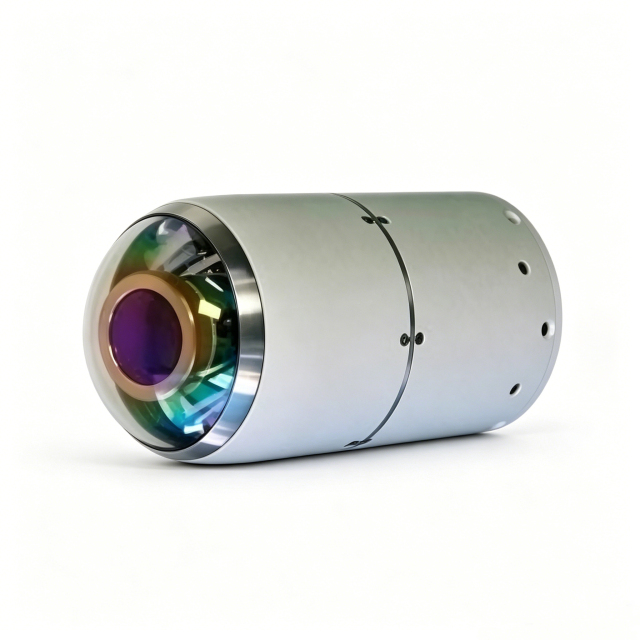

| Product Name | Gimbal-mounted Semi-active Laser Seeker |
|---|---|
|
Detection Field of View |
±25° |
|
Working Distance |
≥4 km |
|
Maximum Line-of-Sight Angular Velocity |
≥10°/s |
|
Angular Velocity Accuracy |
≤0.2°/s |
|
Pitch/Yaw Frame Angle |
±27° |
|
Degree of Isolation |
>5% |
|
Weight |
>2.6 kg |
|
Size |
Φ140 mm × 239 mm |
This semi-active laser seeker, mounted on a gimbal, is suitable for systems requiring stable, continuous target tracking under dynamic conditions.
It provides independent and stable line-of-sight tracking, thereby improving tracking accuracy and stability.
The system supports a line-of-sight angular velocity of ≥10°/s.
Under standard conditions, the operating range is ≥4 kilometers.
