Name: Core Subsystem Seeker S-GD390 EO/IR turret
Brand: skycore
Availability: InStock
Rating: 5 (1 reviews)

Description

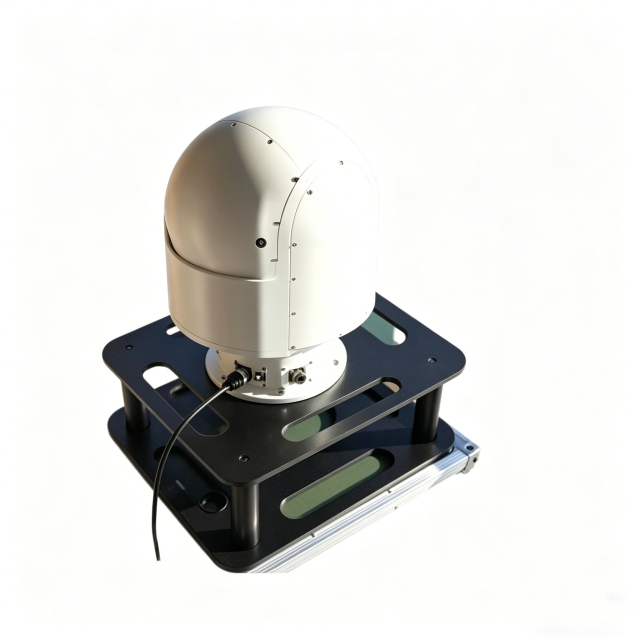

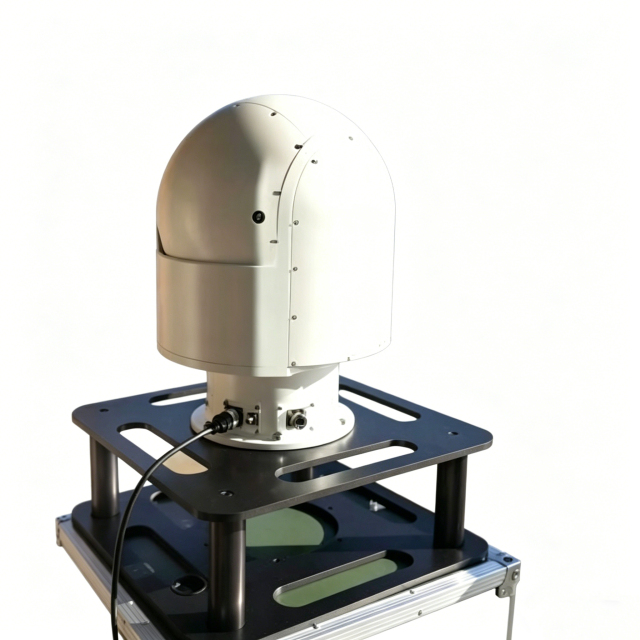

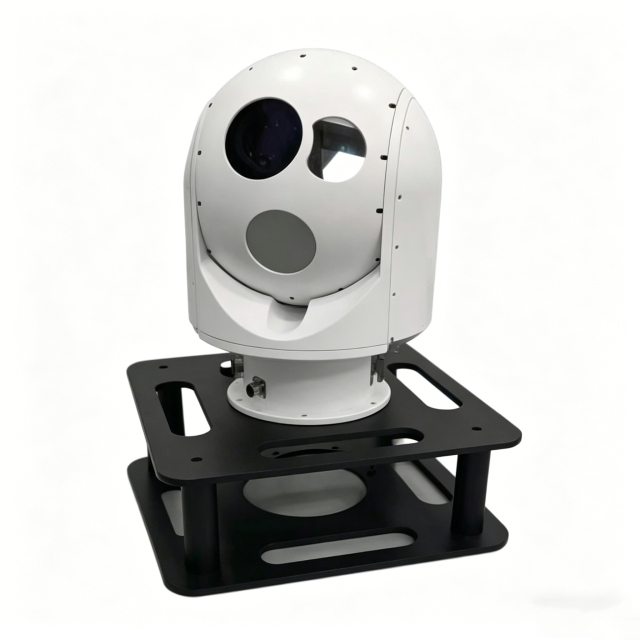

Core Subsystem Seeker S-GD390 EO/IR turret

S-GD390 EO/IR turret is a combination of high-definition visible light camera, medium wave cooled IR camera, laser range finder, image tracker and servo stabilized platform. S-GD390 is designed for shipboard video capture, surface early warning, target surveillance, radar and EO/IR combined operation. It can detect, locate, track, identify and track targets under all weather at day and night. The maximum detection range is up to 15km for targets like small ship and reef.

Supports all-weather dual-spectral (EO/IR) imaging
Stable dual-axis gimbal tracking Real-time target detection and tracking
Adaptable to complex environmental conditions

Dual-Spectrum Detection Capability

Unlike single-mode seekers, this system combines visible light and infrared imaging technologies. The optical sensor provides high-resolution image detail for daytime identification, while the uncooled infrared sensor ensures detection capability in low-light or nighttime conditions.

This dual-mode solution enhances the reliability of target detection and improves adaptability across a variety of operational environments.

Visible Light Imaging

Equipped with a color CMOS sensor (resolution 1920×1080, pixel size 3μm), it provides high-definition visual data for precise target identification.

Infrared Thermal Imaging

Utilizes an uncooled infrared detector (resolution 640×512, pixel size 12μm) for thermal imaging target detection, ensuring reliable operation even under low-visibility conditions.

Stable Tracking Performance

Stability accuracy as high as 0.5 mrad (1σ @1Hz), ensuring smooth and reliable tracking.

Designed for Multi-Environment Operation

The system has a visible light detection range of ≥2.5 kilometers and an infrared detection range of ≥1 kilometer, enabling it to perform medium-range target tracking missions. The dual-spectral configuration allows for seamless switching or fusion of data based on environmental conditions.

Its operating temperature range is -40°C to +60°C, ensuring reliable operation even in harsh environments.

Specifications

Product Name	EO/IR Integrated Seeker Head
EO sensor	color CMOS
EO pixel size	3um
EO resolution	1920*1080
EO focal length	8mm
EO FOV	51°*30°
EO aperture	F 2.8
EO wavelength	0.4 ~ 0.65um
IR sensor	uncooled infrared
IR pixel size	12μm
IR resolution	640*512
IR focal length	18 mm
IR FOV	24°*18°

Application Scenarios

This integrated electro-optical/infrared (EO/IR) seeker is designed for systems requiring reliable multispectral target detection and tracking.

Unmanned Aerial Vehicles (UAVs) Electro-optical surveillance systems Target tracking and identification modules Stabilized imaging and tracking payloads

FAQ

1.What are the advantages of integrated electro-optical/infrared technology?

It enables reliable detection both during the day and in low-light conditions, thereby enhancing overall tracking performance.

2. Does it work at night?

Yes. The infrared sensor allows it to operate effectively in dark or low-visibility environments.

3. What types of targets can it track?

It can track moving targets such as people and vehicles.
